Lesson 3.3: Power over Ethernet (PoE)
Power over Ethernet (PoE) allows a network switch to send both power and data to IP cameras through a single Ethernet cable
-
Key Features:
-
PoE switch sends power + data through a single cable
-
No separate power supply is needed at the camera location
-

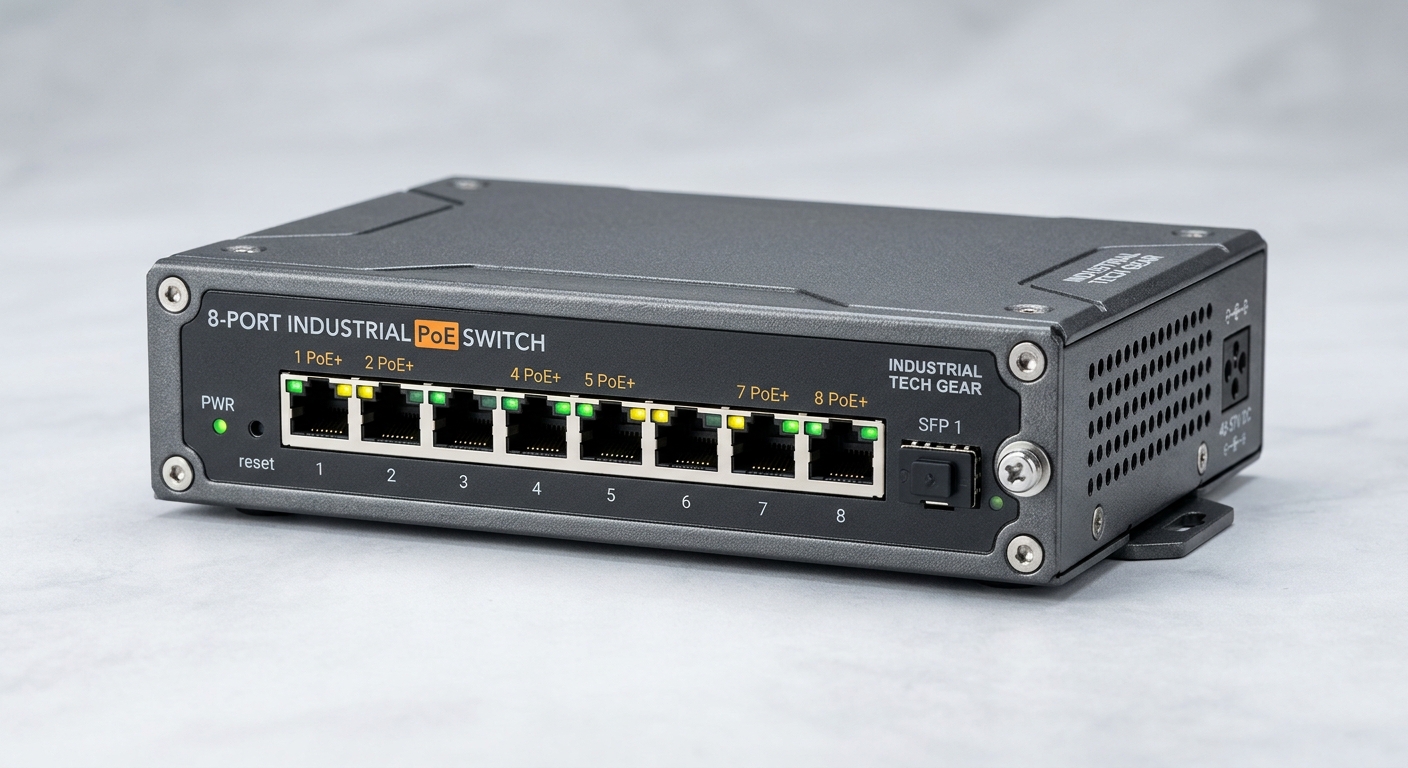

Selecting a PoE Switch
When selecting a PoE switch, evaluate
-
The number of camera ports required
-
The total power budget required by all cameras combined
-
Whether the installation needs an unmanaged or managed switch
