Text lesson
Lesson 5.2: Initial System Setup & Recording Modes
DVR/NVR Initial Setup
-

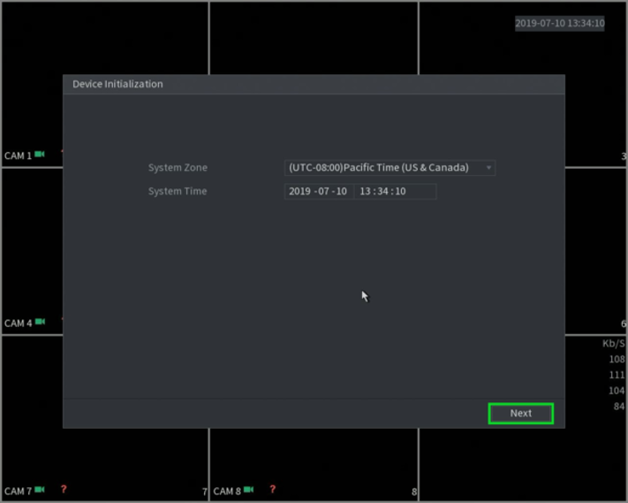

Date & Time Configuration: Set the correct system date and time to guarantee accurate timestamps for evidence
-

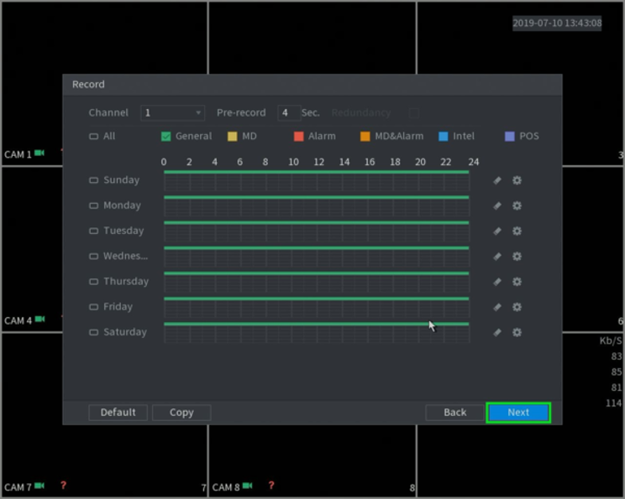

Recording Mode Configuration: Select and set the operational recording mode
-
Continuous: Records 24/7 constantly
-
Motion Detection: Triggers recording only when movement is detected
-
Schedule: Records strictly during user-defined hours or days
-
-

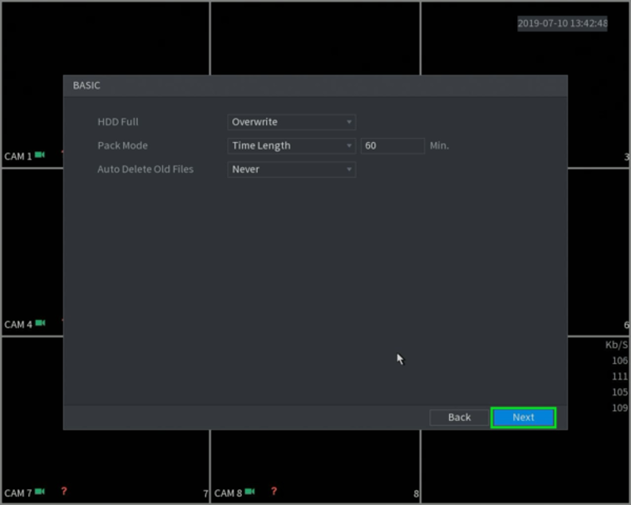

Storage Retention & Overwrite: Configure retention time and enable overwrite settings so the recorder automatically overwrites old video files once the HDD reaches capacity
