Lesson 6.3: Diagnostics & Troubleshooting

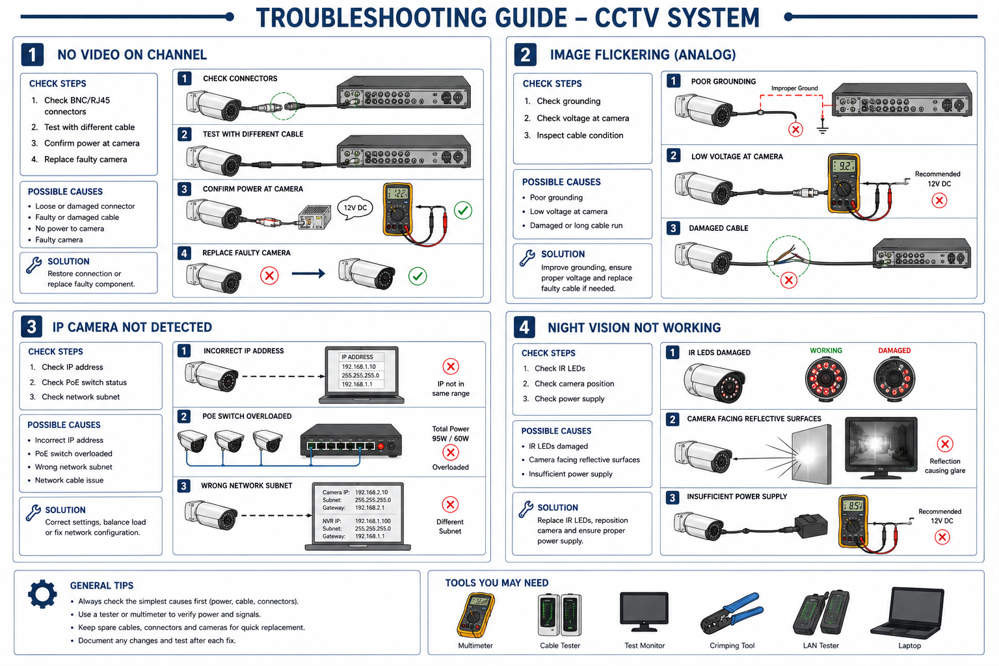

Common Faults & Corrective Actions:
-
No Video on Channel: Check BNC/RJ45 connector terminations, test with a spare cable, confirm power reaching the camera, or replace the camera
-
Image Flickering (Analog): Inspect for poor system grounding, low voltage at the camera end, or damaged coaxial cabling
-
IP Camera Not Detected: Resolve incorrect IP address assignments, wrong network subnets, or an overloaded PoE switch power budget
-
Night Vision Not Working: Inspect for damaged IR LEDs, camera lens facing reflective surfaces (glare), or insufficient power supply
